Panther Industries manufactures beam clamps and conduit clamps used to secure conduit systems in electrical and mechanical installations. These components allow installers to attach conduit to structural elements such as beams, flanges, and mounting surfaces without drilling or welding.
This page outlines how beam clamps and conduit clamps function, when each type is used, and how to select the correct configuration for your application.
Universal Beam Clamps
Attaching conduit to structural steel can require drilling or welding, adding time and complexity to the installation. Universal beam clamps provide a mechanical fastening method that allows conduit to be secured directly to beam flanges without hot work.
These clamps use an adjustable set screw to grip I-beams and wide flange beams. Many designs include an integrated conduit holder, allowing conduit to be attached directly to the clamp while maintaining alignment along the run.
Because they accommodate varying flange thicknesses, universal beam clamps can be used across different structural layouts without requiring modification to the beam.

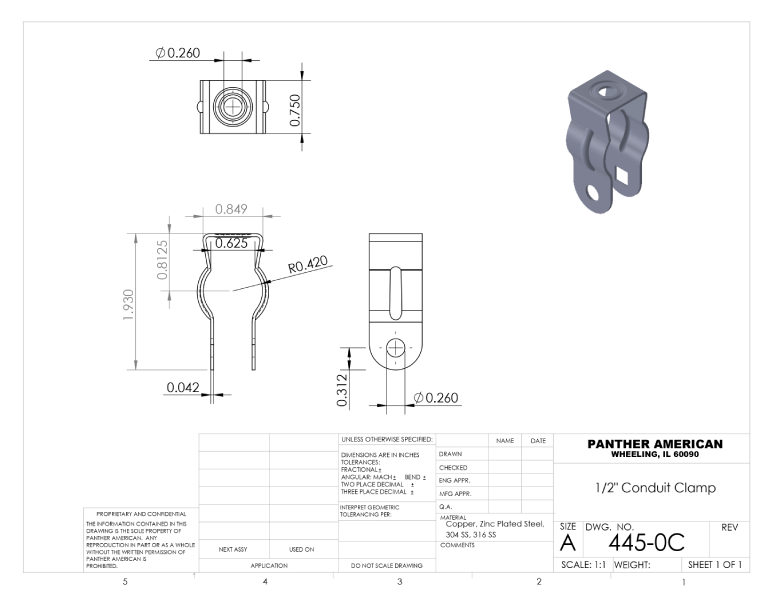

Conduit Clamps
Conduit clamps are used to secure conduit along beams, struts, and other mounting surfaces. These clamps provide stable attachment points that maintain conduit alignment across horizontal and vertical runs.
Many conduit clamp designs use a two-piece or hinged configuration with bolts to create a secure grip around the conduit. Mounting holes allow for direct attachment to structural elements, helping reduce movement in installations subject to vibration or load changes.
Understanding EMT vs IPS Clamp Sizing
Selecting the correct clamp size requires understanding the difference between EMT and IPS conduit standards. Because outer diameters vary between thin-walled EMT and thicker-walled conduit types, using the wrong clamp size can result in improper fit and reduced support.
EMT Beam Clamps. Designed for Electrical Metallic Tubing (EMT), which has thinner walls and smaller outer diameters. Clamps sized for EMT provide a close fit that maintains conduit alignment.
IPS Conduit Clamps. Designed for Iron Pipe Size (IPS) conduit, such as RMC or IMC. These conduit types have thicker walls and larger outer diameters, requiring appropriately sized clamps for proper support.
Applications for Beam & Conduit Clamps
Beam clamps and conduit clamps are used in installations where conduit must be securely supported along structural elements. Our beam clamps and conduit clamps support dependable, vibration-resistant installations in several environments.
Common applications include:
- Manufacturing Facilities. Supporting conduit runs attached to structural steel.
- Commercial Warehouses. Securing conduit along ceiling joists and support framing.
- Data Centers. Managing conduit and cable routing along struts and support systems.
Our components help contractors install conduit systems that meet National Electrical Code (NEC) fastening and support requirements. By using hardware engineered for industrial duty, you reduce the risk of system failure and maintain a safe operational environment.
Installation Advantages
Beam clamps and conduit clamps simplify installation by eliminating the need for drilling or welding in many applications. This reduces installation time and allows conduit to be secured directly to existing structural elements.
Because these components rely on mechanical fastening methods, they are well-suited for retrofit projects, overhead installations, and environments where hot work is restricted.
Select the Right Beam Clamp or Conduit Clamp for Your Installation
Beam clamps and conduit clamps provide a practical solution for securing conduit to structural elements without additional fabrication or modification. Selecting the correct clamp type and size helps maintain proper alignment and support across electrical and mechanical systems.
Panther Industries offers beam clamps and conduit clamps designed to be compatible with a range of conduit types and installation conditions.
Contact Panther Industries to request a quote or browse our beam clamps and conduit clamps to find the correct option for your application.
